Why is NDT (Non-Destructive Testing) Critical in Evaluating Special Processes?

When lives and mission success depend on flawless components, Non-Destructive Testing (NDT) becomes essential. It allows manufacturers like CMW Global (Carver Machine Works) to catch defects invisible to the naked eye, protecting both safety and performance. For those specialize in precision fabrication for demanding industries like aerospace, defense, nuclear, power generation and mining, NDT testing isn’t optional, it’s essential for ensuring the integrity of special processes that form the backbone of critical component manufacturing.

What Makes a Manufacturing Process “Special” and Why Does It Require NDT?

A “special process” in manufacturing refers to any process where the results cannot be easily verified after completion through routine inspection. Examples of special processes are: non-destructive testing, materials testing, heat treatment, and coatings. The results of a special process are highly dependent on the control of the process and/or the skill of the operator.

The three primary special processes that drive the need for NDT verification are:

Welding: The fusion of materials creates internal structures that can’t be assessed through visual inspection alone. Defects like incomplete fusion, porosity, or inclusions may be hidden beneath seemingly perfect surface welds.

Heat Treating: This process alters the metallurgical properties of materials, changing grain structure, hardness, and stress patterns in ways that aren’t visible to the naked eye.

Coating Applications: Whether applied for corrosion resistance or thermal protection, coatings must maintain specific thickness and adhesion properties that can only be verified through specialized testing methods.

At CMW Global, we take pride in our ability to deliver high-quality welding services that meet the diverse needs of industries ranging from aerospace and defense to pulp and paper, oil and gas, and heavy equipment manufacturing. Our NADCAP certification in fusion welding for titanium, aluminum, and high-nickel alloys underscores the critical importance of proper process control and verification in these special processes.

Which NDT Methods Are Most Effective for Welding Verification?

The effectiveness of NDT methods varies depending on the type of defects being detected and the materials involved. These include LPT (Liquid Penetrant Testing), MPT (Magnetic Particle Testing), UT (Ultrasonic Testing), RT (Radiographic Testing) and ECT (Eddy Current Testing).

Radiographic Testing (RT): An NDT method that can be used on most materials and detect discontinuities on or below the surface. This method uses X-rays produced by an X-ray tube, or gamma rays, produced by a radioactive isotope. This provides a permanent film record of weld quality and is particularly effective for detecting internal porosity and inclusion defects.

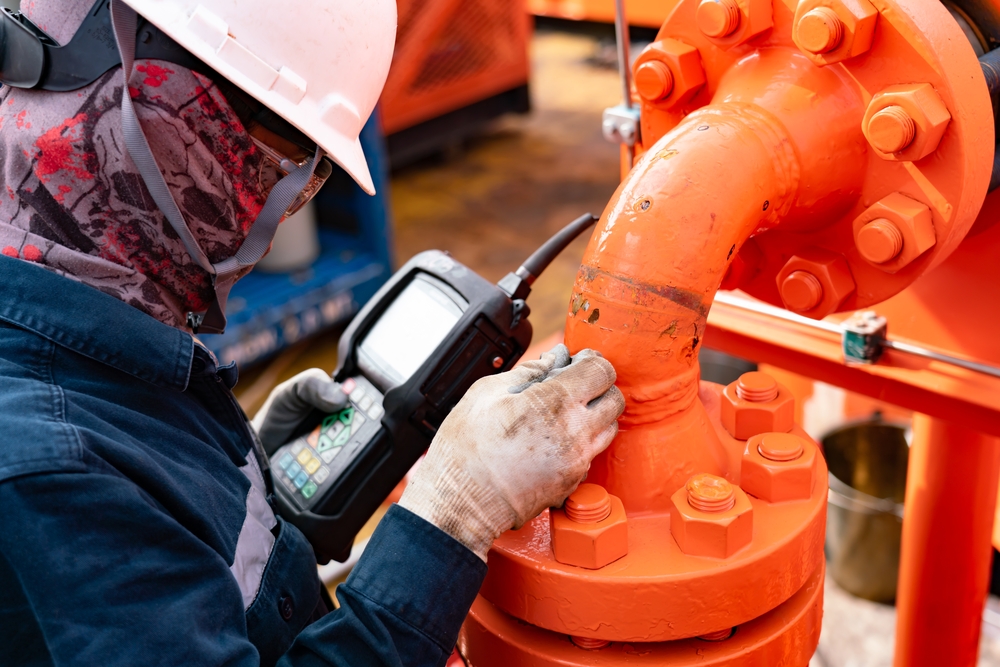

Ultrasonic Testing (UT): An NDT method commonly used for hydrogen flakes, inclusions, incomplete fusion, shrinkage cracks, and stringers. This process has the highest depth of penetration to detect subsurface flaws and their location. UT is invaluable for thick-section welds where other methods may not penetrate sufficiently.

Magnetic Particle Testing (MPT): Highly effective for detecting surface and near-surface discontinuities in ferromagnetic materials. This method is particularly useful for detecting stress concentration areas that could lead to fatigue failures.

Liquid Penetrant Testing (LPT): An NDT method which is highly sensitive to small surface flaws and discontinuities. This versatile method works on all non-porous materials and provides excellent sensitivity for surface-breaking defects.

For aerospace applications, the choice of NDT method often depends on the specific material and component geometry. Our experienced team of certified welders, with AWS certs and proficiency in NDT (non-destructive testing), ensures precision, durability, and reliability in every project—whether working with stainless steel, aluminum, titanium, duplex, 2205, inconel, or hastelloy.

How Do ASME and NADCAP Standards Influence NDT Requirements?

The regulatory landscape for NDT requirements is shaped by two major standards frameworks: ASME (American Society of Mechanical Engineers) and, in the defense sector, NADCAP (National Aerospace and Defense Contractors Accreditation Program).

ASME Standards: Our extensive certifications include ASME “U” and National Board “R” – allowing us to build and repair critical equipment including pressure rated equipment. ASME Section VIII requires specific NDT procedures for pressure vessel fabrication, including radiographic examination of certain weld categories and ultrasonic testing for thick-section components.

NADCAP Requirements: NADCAP offers 26 critical process accreditations, including historic special processes such as, nondestructive testing, heat treating, chemical processes, but has evolved into critical process oversight for the industry, such as printed board assemblies (PBA), materials testing laboratories, and measurement & inspection.

CMW Global earns the NADCAP (National Aerospace and Defense Contractors Accreditation Program) certification in fusion welding, becoming one of the first NADCAP facilities in the southeastern US. This certification requires adherence to stringent process controls, including:

• Documented NDT procedures for each welding process
• Calibrated equipment with traceability to national standards
• Certified NDT personnel with appropriate qualifications
• Regular audit compliance demonstrating consistent process control

The integration of these standards ensures that NDT processes meet the exacting requirements of aerospace and defense applications where component reliability is paramount.

What Are the Cost Implications of Skipping NDT on Critical Components?

The financial impact of forgoing NDT testing extends far beyond the initial cost savings. When considering aerospace NDT requirements, the cost-benefit analysis strongly favors comprehensive testing protocols.

Direct Cost Factors:

• Field failure costs in defense applications significantly exceed the original NDT investment due to mission-critical nature of components
• Defense component replacement often requires specialized military logistics and extended downtime of critical systems
• Military equipment failures can result in mission delays, operational disruptions, and potential safety risks to personnel
• Defense contract penalties and potential loss of security clearances for quality failures on classified programs
• Warranty claims and liability exposure for safety-critical defense applications, including potential legal ramifications for contractor negligence

Indirect Cost Considerations:

• Loss of customer confidence and potential contract cancellations
• Regulatory investigations and potential facility shutdowns
• Supply chain disruptions affecting multiple programs
• Reputation damage in industries where quality perception drives business

How Does NDT Integration Affect Production Timelines?

The integration of NDT into production workflows requires careful planning to minimize impact on delivery schedules while maintaining quality standards. CMW Global specifically holds NADCAP certification in Fusion Welding and regularly conducts Gas Tungsten Arc Welding for the aerospace and defense industries for high-precision welds. To enhance efficiency and maintain superior quality, we have integrated semi-automated welding processes into our operations. These advanced techniques help reduce costs, improve consistency, and minimize defects, ensuring that every weld meets our rigorous quality control standards and adheres to industry certifications and special processes.

Strategic NDT Scheduling:

• Progressive inspection during fabrication rather than end-of-process testing
• Parallel processing where NDT occurs simultaneously with subsequent operations
• Risk-based inspection focusing resources on critical weld joints
• Automated NDT systems for high-volume, repetitive components

Timeline Optimization Strategies:

• Pre-qualified welding procedures that minimize NDT scope
• Real-time monitoring systems that reduce traditional NDT requirements
• Mobile NDT capabilities for large assemblies that can’t be moved
• Integrated quality planning from design through delivery

The key to successful NDT integration lies in viewing it not as an additional step, but as an integral part of the manufacturing process. CMW Global’s work within the important industries of aerospace and defense, nuclear, pharmaceutical, power generation, and more requires meticulous attention to detail, gold-standard equipment, and decades of expertise.

Conclusion

Non-destructive testing represents far more than a quality control checkpoint; it’s the foundation upon which reliable special processes are built. For aerospace and defense manufacturers especially, where component failure can have catastrophic consequences, NDT testing provides the critical verification needed to ensure that welding, heat treating, and coating processes meet their intended specifications.

From aerospace to defense, pulp & paper to chemical processing, we’ve built our reputation solving the toughest manufacturing challenges. When you need it done right and need it done fast, Carver Machine Works delivers results that matter. Our NADCAP certification and comprehensive NDT capabilities ensure that special processes are not just completed, but completed with the precision and reliability that critical applications demand.

The investment in proper NDT protocols pays dividends through reduced field failures, enhanced customer confidence, and the ability to compete in the most demanding markets. As manufacturing processes become increasingly sophisticated, the role of NDT in validating special processes will only grow in importance, making it an essential capability for any manufacturer serious about quality and reliability.
